P/N: ETI0003-1070 20 Amp/Phase Power Distribution Unit (PDU)

Part Number:
ETI0003-1070
Rugged Rackmount Power Distribution Unit
with 3 Phase Input / 15 Single Phase Outputs


Designed and built for AP Labsfor Aircraft Use
Rugged Power
ETI0003-1070 Rugged Rack Mount PDU
3 Phase, 20 Amp/Phase 115/200 VAC, 40-440 Hz Input
15 Output Circuits w/ Individual Circuit Breaker Control
All Breakers Rated for 100 G Shock
Individual Clocked MS Output Connectors

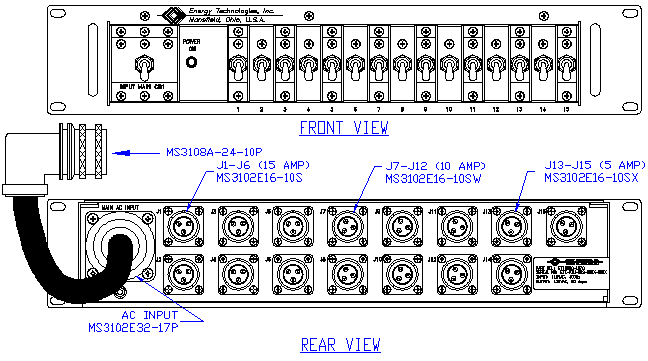

<br />ETI0003-1070 Front and Rear View

ETI0003-1070 Standard Front and Rear Panel Layout

The field proven Rugged Systems™ Power Distribution Unit (PDU) line is ideally suited for military, industrial and telecommunicationsapplications requiring a rugged rack, vehicular or field deployable, high reliability, compact sizeand light weight design. The heavy-duty chassis occupies only 2U (3.5”) ofrack space while controlling up to 7000 VA of power via fifteen (15) circuitbreakercontrols.  Therounded metal corners aid in safehandling. Internally, all major components are well secured and electricallyinsulated to prevent damage due to shock and vibration. All controlsand protective devices are brought to the front panel. Further, all front panel devices are recessed with critical switches orbreakers guarded to preventdamage or accidental operation.

The three pole inputbreaker provides overload and short circuit protection for the whole unit. The PDU allows control ofthe individual output circuits. Theoptional Emergency Power Off (EPO) function can remotely open the input circuit breaker. Eachload is controlled and protected by a 100 G shock rated circuit breakersavoiding accidentaloperation due to shock or vibration. An optional elapsed time hour meteris available to track therack equipment operation for maintenance.

Therear panel provides locking connectors for the input power and output power. The combination MS input connector and input EMI/RFI filter providessuppression of conducted EMI. The transient surge suppression helps further protect the connected equipment.

Overall, the Rugged Power product line is uniquely qualified for critical shipboard,vehicle, airborne or land based systems combining advanced modular designfeatures with highly reliable construction.

Technical Specifications:
P/N:
ETI0003-1070

AC INPUT FROM RACK
PDU input from rack: 120 VAC nominal, optional up to 600 VAC
INPUT MAIN connection: MS3102E32-17P, 4 pin locking
Input control/protection: Guarded 3 pole, 20 amp/phase circuit breaker
Input power indicator: Green neon lamp
POWER DISTRIBUTION
PDU output voltage to loads: Same as input from rack
Output rating to loads: Limited to lesser of 15 amps/load or 60 amps total
Output circuits: 15 controlled outputs w/1 pole circuit breakers
LOADs (J1-J15) MS3102E16-10S, -10SW, -10SX, 3 pin locking
MECHANICAL
Dimensions ( H x D x W ): 3.5 (2U) x 15.0 x 19.0 in (89x381x483mm)
Rack Slide Mount Patterns: Slides or rear support mounting brackets
Alternate Mounting Options: Table, Wall, Floor, Portable, Horizontal/Vertical
Shipping weight: 20 lb. (9.1 kg) with lift handles front
Audible noise: Less than 47 dB @ 5.0 ft., ANSI "A" scale
Cooling type: Convection cooling
ENVIRONMENTAL
Storage temperature: -13° to 140° F ambient (-25° to 60° C )
Operating temperature: 32° to 122° F ambient (0° to 50° C ), higher optional
Operating humidity: 0 to 95% relative humidity (non-condensing)
Operating elevation: Up to 15,000 ft (4,572 m), higher optionally
STANDARDS
United States: Meets UL-1778 standard,
MIL STDs 901, 167 & 1399 Shock/Vib/Electrical
Canada: CSA C22.2 No. 107 safety requirements
EMI Protection: EMI/RFI FCC, Class B, MIL STDs 461
OPTIONAL ACCESSORIES
  Dual Source Input, Emergency Power Off, EMI Insertion Loss Filters, Elapsed Time Meter, Auxiliary DC Power Supply, Transient Surge Suppression, Load Sequencing
